RakworX Colocation Cabinets for Multi-Tenant Data Centers
RakworX colocation cabinets divide one enclosure into two, three, or four individually locking compartments, so a colo or multi-tenant facility can host several customers in a single footprint. They use standard 19 inch rack rails, a combo lock per chamber, secure rear cable channels, and front and rear access, in 42U to 52U heights and 600mm or 750mm widths. Comp-Utility supplies, configures, and installs RakworX colo cabinets across Central Texas.
What We Provide
Our Capabilities
Configure Tenant Chambers
We specify 2, 3, or 4 individually locking compartments per cabinet with partition shelving, so each tenant gets a secure, self-contained space.
Learn moreSecure Cabling and Power
Dedicated rear cable channels and zero-U PDU mounts keep each tenant's cabling and power organized and separated, compatible with overhead and underfloor runs.
Learn moreBuild-Out and Installation
We deliver colo cabinets pre-built and bayed into a row, installed and ready to provision for tenants.
Learn moreMore Tenants, Less Space

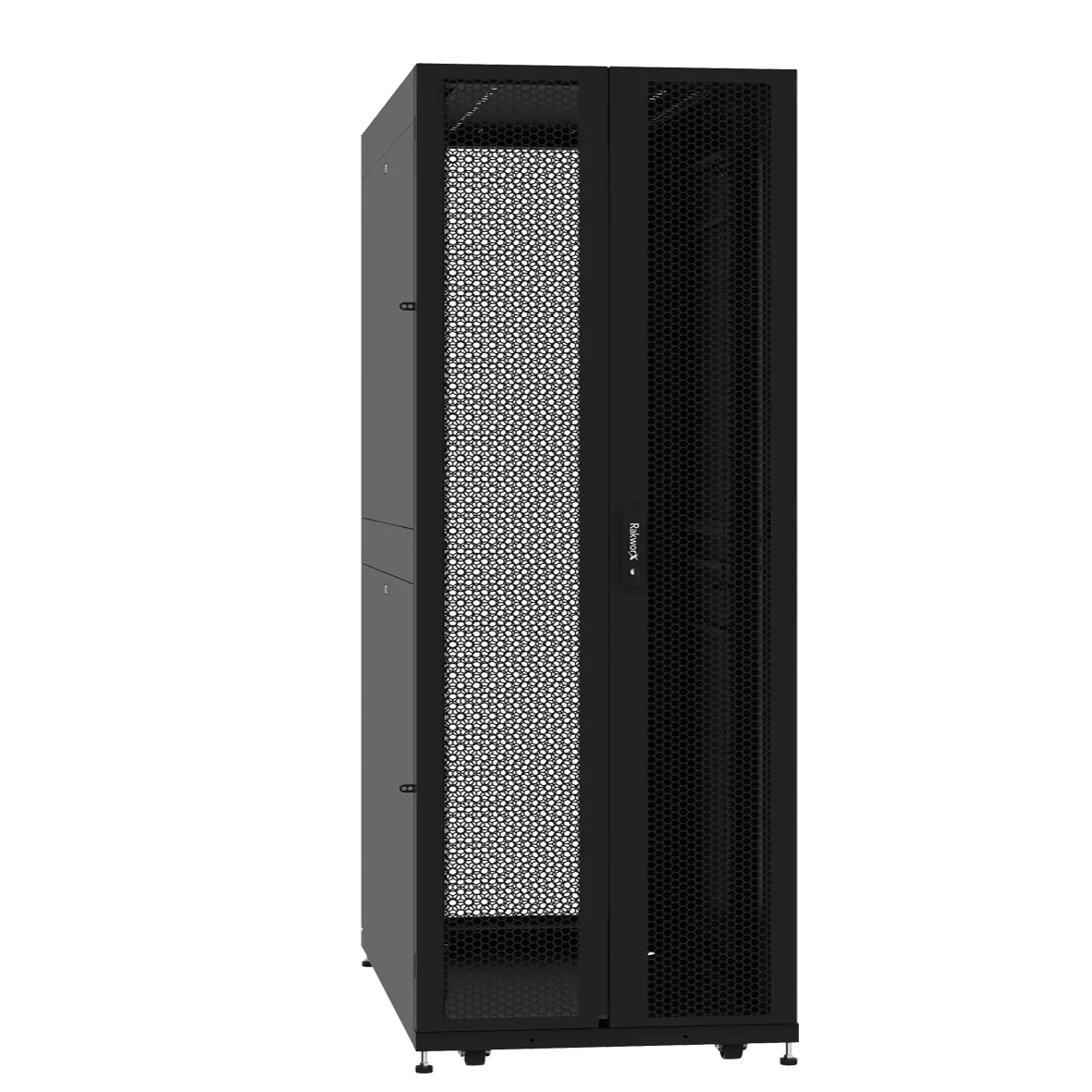

Two, Three, or Four Locking Chambers per Cabinet
Each RakworX colo cabinet can be partitioned into two, three, or four compartments, each with its own locking door, so multiple tenants share one cabinet without sharing access. Individual locking chambers keep each customer's equipment physically secure while you serve more tenants per square foot of white space.
Standard form-factor 19 inch rack rails accept normal rack equipment, and partition shelving supports smaller form-factor devices. The scalable model lets you offer attractive startup costs to small, high-growth customers and grow them in place.
Clean Cable Management

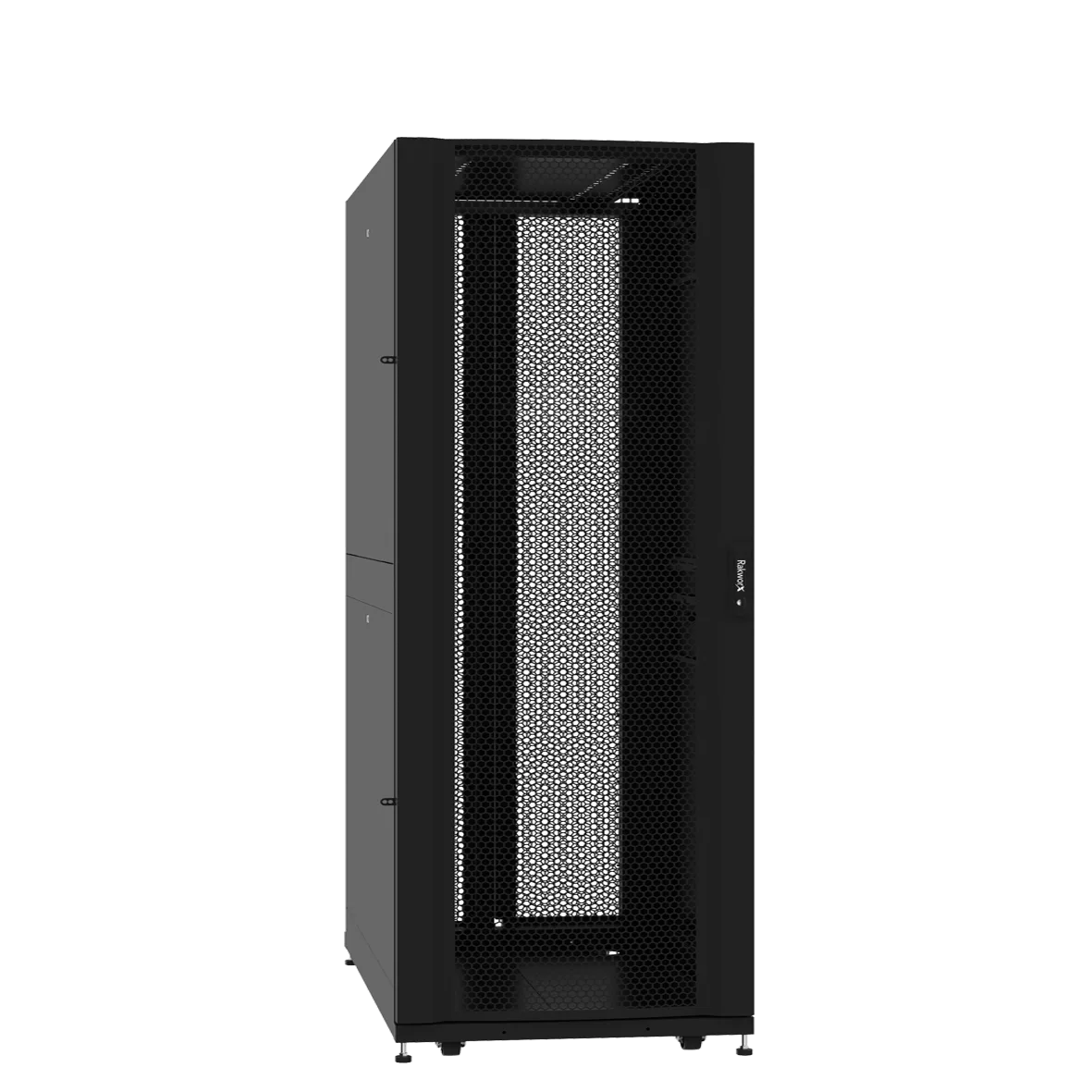

Secure Rear Cable Channels for Each Compartment
Secure cable channels at the back of each compartment give every tenant a dedicated, organized pathway for cabling, which reduces clutter and keeps one tenant's work from disturbing another's. The channels are designed to integrate with overhead and underfloor structured cabling.
Front and rear entry access and smart cable management make day-to-day moves, adds, and changes straightforward in a busy multi-tenant environment.
Key Specifications
| Attribute | RakworX Colo Cabinet |
|---|---|
| Capacity | 42U to 52U |
| Width | 600mm or 750mm |
| Depth | 1070mm or 1200mm |
| Compartments | 2, 3, or 4 individually locking chambers |
| Rack rails | Standard 19 inch (EIA) form factor |
| Locking | Combo lock per chamber |
| Cabling | Secure rear cable channels, overhead and underfloor compatible |
| Access | Front and rear entry, reversible mesh doors |
| Construction | Six-brace frame, 3,000 lb load rating |
| Standard inclusions | PDU mounts, casters, lockable side panels, roof with 6 cable ports, partition shelving |
| Representative models | RCS62107-12 (2 chamber), RCS62107-13 (3 chamber), RCS62107-14 (4 chamber) |
| Typical applications | Colocation and multi-tenant data centers |
Specifications reflect the RakworX colo cabinet line; exact chamber count, dimensions, and model numbers vary by build. Contact us to confirm the right configuration for your project.
The Comp-Utility Difference
Why Comp-Utility?
Engineer-Owned and Operated
Comp-Utility is owned and operated by engineers, with licensed Texas Professional Engineers (P.E.) on staff. That rigor anchors every design, specification, and installation.
Turnkey, Single-Contract Partner
We sell, design, install, and maintain complete infrastructure end to end. One accountable team and one contract for power, cooling, distribution, and cabling.
Trusted Since 1992
We have designed, installed, and maintained mission-critical power and cooling infrastructure across Central Texas since 1992, through every generation of the technology.
24/7 Emergency Response and Preventative Maintenance
Our technicians provide preventative maintenance programs and 24/7 emergency response, with rapid on-site dispatch across Central Texas when facilities need us most.
Licensed, Certified & Recognized
We hold ourselves to the standards of the institutions we serve, from professional licensure and jobsite safety to the industry organizations that set the bar for mission-critical work.
Licensed Professional Engineers
State of Texas (TBPE)
OSHA 30 Certified
Field Technicians
AFCOM Member
Data center industry association
7x24 Exchange Member
Mission-critical infrastructure
Frequently Asked Questions
What is a colocation cabinet?
A colocation cabinet is a single enclosure divided into separate, individually locking compartments so that multiple tenants can house equipment in one cabinet without access to each other's gear. RakworX colo cabinets support two, three, or four chambers per cabinet, each with its own locking door, which lets a colo or multi-tenant facility serve more customers in less floor space.
How many tenants fit in one RakworX colo cabinet?
A RakworX colo cabinet can be configured for two, three, or four tenants, with each tenant assigned an individually locking compartment. The right chamber count depends on how much U-space each tenant needs and your density goals. Comp-Utility helps you choose the configuration that balances tenant capacity with usable rack space.
How are tenant compartments secured?
Each compartment has its own combo lock, so only the tenant with the correct combination can open their chamber. This keeps every customer's equipment physically isolated and secure within the shared cabinet. Front and rear access means each tenant can service their own space without disturbing neighbors. Comp-Utility configures the locking and access scheme to your facility's policies.
How is cabling kept organized between tenants?
Secure cable channels at the back of each compartment give every tenant a dedicated pathway for their cabling, which keeps runs organized and separated. The channels are designed to work with overhead and underfloor structured cabling, so they integrate with your existing infrastructure. This reduces clutter and simplifies moves, adds, and changes in a multi-tenant row.
What sizes do RakworX colo cabinets come in?
RakworX colo cabinets are available from 42U to 52U in height, in 600mm and 750mm widths, with 1070mm and 1200mm depth options. They use the same six-brace construction and 3,000 lb load rating as the standard RakworX cabinet line. Comp-Utility specifies the height, width, and depth to match your tenant mix and equipment.
Can colo cabinets scale as tenants grow?
Yes. The colo model is built for scale-as-you-go economics: you can offer small, high-growth customers an attractive entry footprint in a shared cabinet, then expand them into more chambers or dedicated cabinets as they grow. This lets a colo provider win smaller accounts without stranding white space. Comp-Utility plans the cabinet layout to support that growth path.
Do colo cabinets support standard rack equipment?
Yes. RakworX colo cabinets use standard 19 inch (EIA) rack rails, so they accept normal rack-mount servers, switches, and appliances. Partition shelving is available for smaller form-factor devices that are not rack-mountable. Zero-U positions accept rack PDUs without consuming equipment U-space, so each compartment can have its own metered or switched power.
How do RakworX colo cabinets handle airflow?
Colo cabinets use reversible mesh doors front and rear for ventilation, the same airflow-optimized design as the standard RakworX cabinet line. For higher-density colo rows, Comp-Utility can add aisle containment and air management so cool and hot air stay separated across the multi-tenant deployment. We design the cooling approach alongside the cabinet selection.
Who supplies and installs RakworX colo cabinets in Central Texas?
Comp-Utility supplies, configures, builds out, and installs RakworX colocation cabinets across Central Texas, integrated with PDUs, cabling, and containment. Engineer-owned since 1992, with licensed Texas Professional Engineers and OSHA-trained technicians on staff. Call (512) 346-0999 or email sales@comp-utility.com to request a quote.
