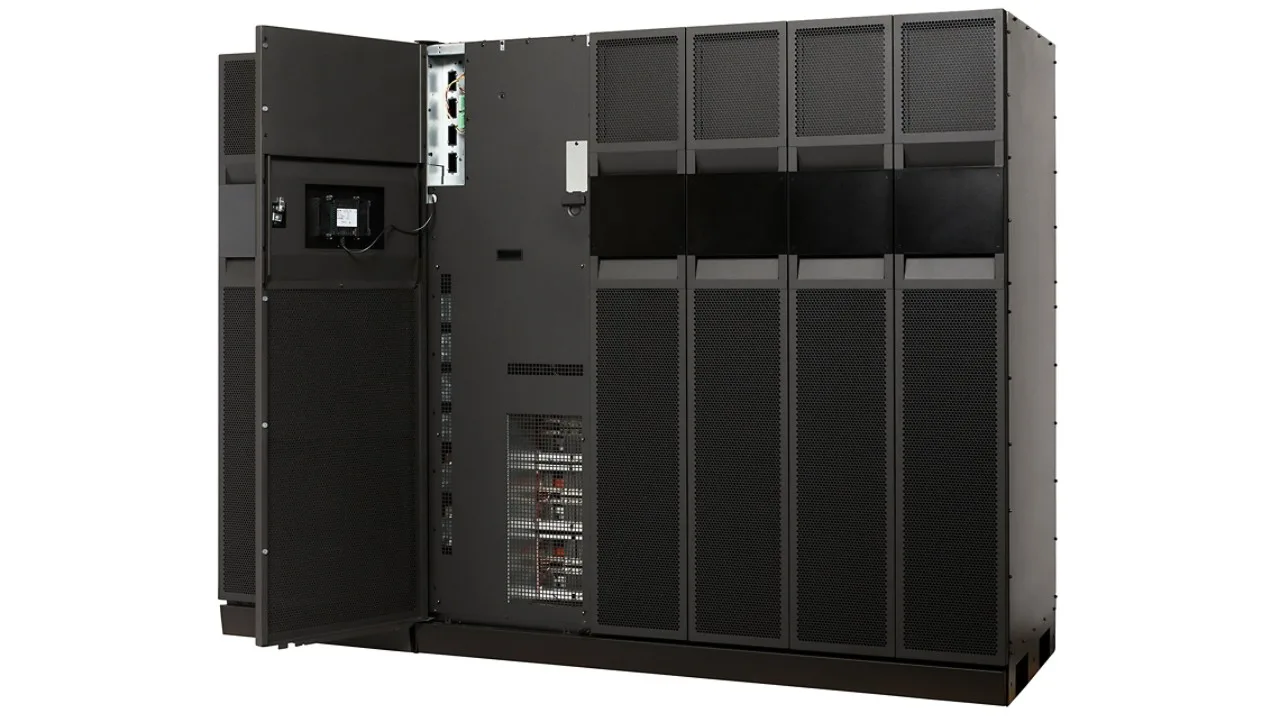

Eaton 93PM Modular UPS: Specs, Sizing, and Service

The Eaton 93PM is a transformer-free, modular, three-phase online double-conversion UPS rated from 30 to 1200 kW. It protects critical loads by continuously conditioning power and switching to battery instantly during a utility disturbance. It is widely deployed in data centers, hospitals, and other mission-critical facilities that need scalable, high-efficiency backup power with optional redundancy.

The 93PM achieves roughly 97% efficiency in full online double-conversion mode and up to about 98.5% in Energy Saver System (ESS) mode. ESS reduces energy and cooling cost by operating more efficiently when conditions allow, while still transferring to full double-conversion protection in milliseconds if power quality degrades. Higher efficiency directly lowers operating cost over the life of the system.

Sizing starts with your critical load in kW, your redundancy target (such as N+1), required battery runtime, and expected growth. Because the 93PM is modular, you can install a frame sized for the future and populate power modules as load grows. Comp-Utility's engineers calculate the load, recommend the frame and module count, and size the battery to your runtime requirement.

A monolithic UPS is a fixed-capacity unit, while the 93PM is modular: capacity and redundancy are added by inserting hot-swappable power modules. Modular architecture lets you pay as you grow, achieve internal N+1 redundancy, and service a module without taking the whole system down. For facilities expecting load growth or needing high availability, the modular approach usually wins on flexibility and uptime.

Yes. The 93PM supports both VRLA and lithium-ion batteries. Lithium-ion typically offers two to three times the service life of VRLA, a smaller and lighter footprint, faster recharge, and tolerance of higher temperatures. While the upfront cost is higher, lithium-ion often lowers total cost of ownership through longer replacement intervals and reduced maintenance.

The 93PM supports internal module-level redundancy (such as N+1 within a frame) and can be paralleled for system-level redundancy up to 2N. The right configuration depends on your availability target and data center tier goals. Comp-Utility designs the redundancy scheme, from a single N+1 frame to paralleled systems, to match your uptime requirements and budget.

Comp-Utility installs, commissions, and services the Eaton 93PM throughout Central Texas. As a long-standing Eaton distribution partner with licensed Texas Professional Engineers and OSHA-trained technicians on staff, we handle sizing, startup, preventative maintenance, battery service, and 24/7 emergency response, all under one contract. Call (512) 346-0999 or request a quote to discuss your project.

Like any online UPS, the 93PM needs periodic preventative maintenance: battery testing, capacitor and cooling-fan inspection and replacement at end of life, firmware and connection checks, and verification of operating modes. A maintenance program keeps the manufacturer warranty valid and catches wear items before they cause downtime. Comp-Utility tailors the visit cadence to how critical your load is.

Yes. The 93PM is a common upgrade path from older transformer-based or end-of-life three-phase units. A replacement project covers load assessment, the new frame and battery, removal of the old system, installation, and commissioning, often planned to keep your load protected during the transition. Comp-Utility manages the full turnkey replacement so nothing falls between trades.

Call Comp-Utility right away at (512) 346-0999, and have the unit's model and serial number ready along with any alarm codes or messages shown on the UPS display. A unit in alarm can indicate a battery, load, or power-path issue that needs prompt attention. Because we maintain a large base of units under contract with the major UPS manufacturers, we can escalate directly to the right factory resources and coordinate service faster and more directly than a single end user calling general support, often getting you answers and a technician on site sooner.
