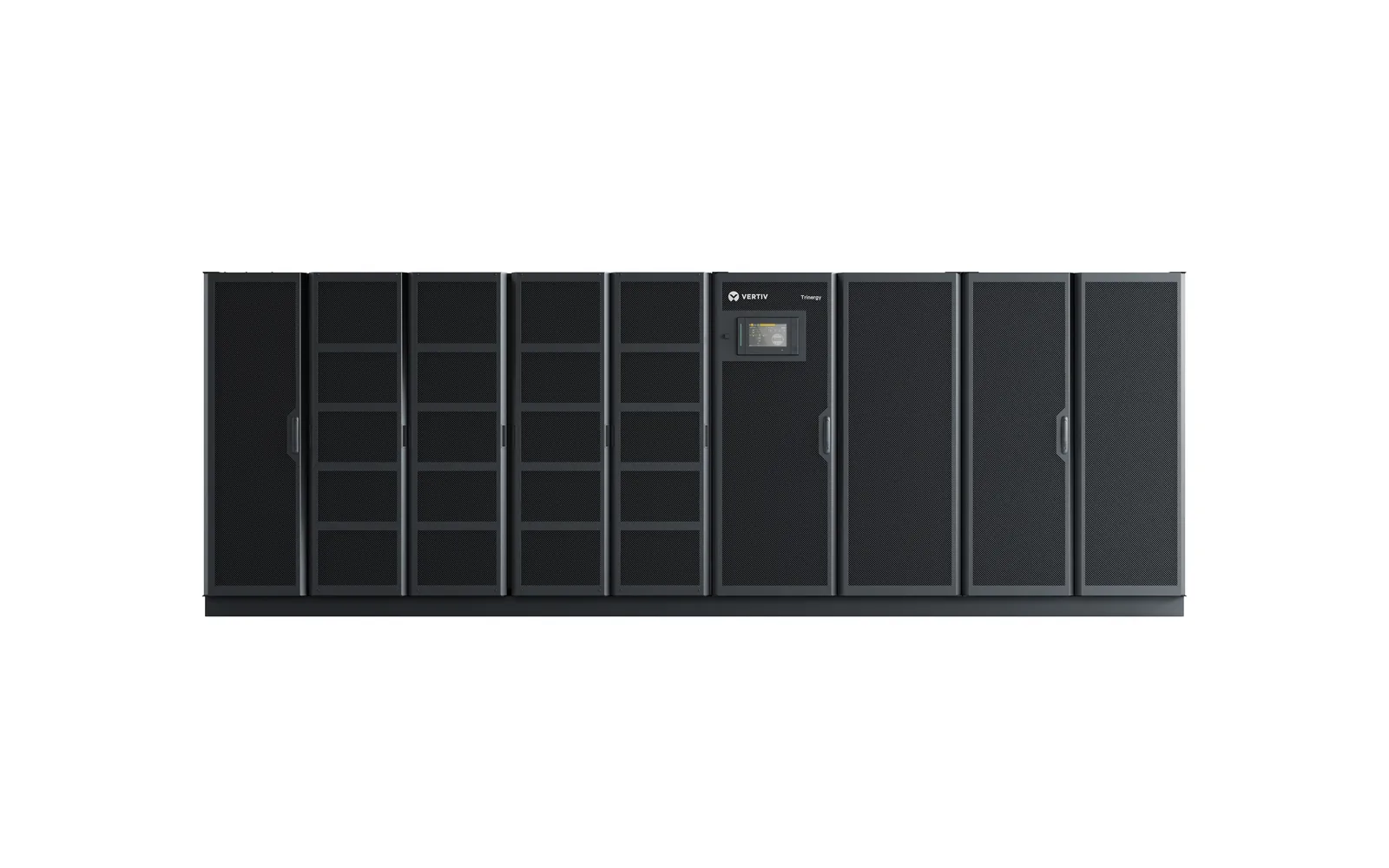

Vertiv Liebert Trinergy Cube Large Modular UPS

The Liebert Trinergy Cube is a large modular three-phase UPS that scales from about 200 kVA to multi-megawatt capacity. It is designed for hyperscale, large enterprise, and colocation data centers, delivering up to 99% efficiency in Dynamic Online mode with a flexible, modular architecture that supports growth and redundancy.

The Trinergy Cube's Dynamic Online mode optimizes the conversion path to minimize losses while still protecting power quality, reaching up to 99% efficiency, and transfers to full double conversion when conditions require. At multi-megawatt scale, this efficiency translates into substantial energy and cooling savings over the system's life.

The platform scales from a few hundred kVA to several megawatts and beyond by adding capacity and paralleling units. This makes it suitable for hyperscale campuses and large enterprise data centers. Comp-Utility designs the capacity and redundancy architecture to match your current and projected load.

Yes. The Trinergy Cube supports modular and system-level redundancy, including paralleled configurations up to 2N for the highest availability targets. Comp-Utility designs the redundancy scheme to align with your data center tier objectives and validates it through integrated systems testing during commissioning.

Yes. The Trinergy Cube supports VRLA and lithium-ion batteries. At megawatt scale, lithium-ion is often preferred for its long life, small footprint, and low maintenance, which reduces total cost of ownership across a large deployment. Comp-Utility specifies the chemistry and runtime appropriate to your facility.

All three are large, high-efficiency modular UPS platforms for major data centers. The Trinergy Cube, Eaton 9395XC, and Schneider Galaxy VX/VXL each have strengths in efficiency, density, and architecture. As a vendor-agnostic partner of all three manufacturers, Comp-Utility compares them against your capacity, density, and standardization goals.

Comp-Utility, a long-standing Vertiv distribution partner with licensed Texas Professional Engineers, specs, installs, commissions, and maintains the Liebert Trinergy Cube across Central Texas, including battery service and 24/7 emergency response. Call (512) 346-0999 or email sales@comp-utility.com.

It requires periodic battery testing, capacitor and fan replacement at end of life, firmware and connection checks, thermal scanning, and verification of operating modes and redundancy. A documented preventative maintenance program keeps warranties valid and prevents wear items from causing downtime. Comp-Utility provides preventative maintenance and 24/7 response across Central Texas.

Call Comp-Utility right away at (512) 346-0999, and have the unit's model and serial number ready along with any alarm codes or messages shown on the UPS display. A unit in alarm can indicate a battery, load, or power-path issue that needs prompt attention. Because we maintain a large base of units under contract with the major UPS manufacturers, we can escalate directly to the right factory resources and coordinate service faster and more directly than a single end user calling general support, often getting you answers and a technician on site sooner.
