RakworX Modular Crypto Mining Farm
The RakworX modular mining farm is a prefabricated, containerized data center optimized for crypto mining and high-density edge computing, scalable up to 40 megawatts per installation. It combines EC-fan fresh-air direct evaporative cooling, G2 air filtration, three-phase 415/240V power with custom distribution panels and main disconnects, 18-port intelligent PDUs, and stackable adjustable shelving for miners. Comp-Utility designs, supplies, and installs it across Central Texas.
What We Provide
Our Capabilities
Power Distribution and Disconnects
We design the three-phase distribution, custom power panels, and main disconnects to feed dense miner loads safely at scale.
Learn moreCooling and Filtration
EC-fan direct evaporative cooling and G2 filtration keep ambient temperatures and air quality in range for long miner service life.
Learn moreDesign and Installation
Our engineers plan the site power and layout and install the modules under one contract, from utility tie-in to commissioning.
Learn moreBuilt for Scale

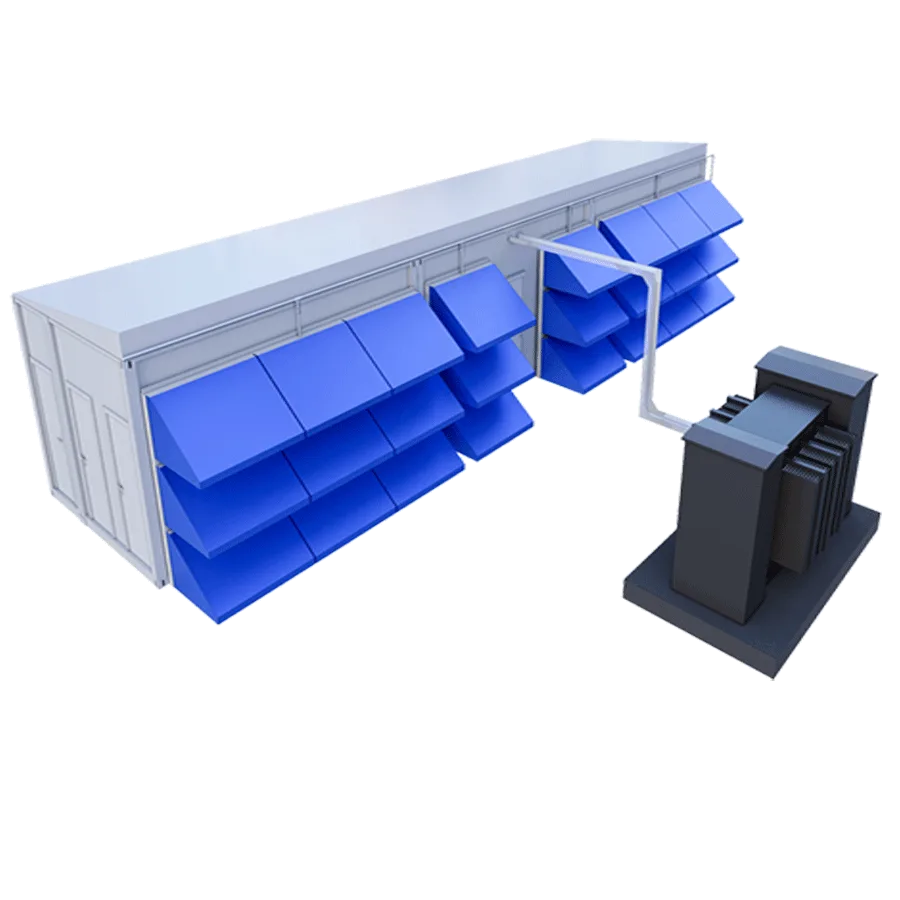

Modular Mining Capacity up to 40 Megawatts
The RakworX modular mining farm is a containerized, prefabricated approach that scales up to 40 megawatts per installation, so operators can deploy and expand capacity rapidly without building a conventional facility. Stackable, adjustable shelving with an inner-layer height around 400mm holds miners densely and is easy to install and manage, with strong and weak electrical kept separated for safety and tidiness.
Power is delivered three-phase at 415/240V through custom distribution panels and main disconnects, with transformer output distribution sized for large loads, and an 18-port intelligent PDU that can be managed remotely over Ethernet and Modbus.
Keep Miners Running
EC-Fan Evaporative Cooling with G2 Filtration
Mining hardware runs hot and continuously, so the farm uses EC fans and a fresh-air direct evaporative cooling system to hold internal ambient temperature in range efficiently. Managing air humidity reduces stress on miners and helps extend their service life.
Incoming air passes through a G2 filter that removes fine dust particles, delivering cleaner air to the equipment and reducing fouling. The result is an energy-efficient, rapidly deployable environment purpose-built for sustained high-density compute.
Key Specifications
| Attribute | RakworX Modular Mining Farm |
|---|---|
| Type | Prefabricated, containerized modular mining / edge compute farm |
| Scalability | Up to 40 MW per installation |
| Cooling | EC fan + fresh-air direct evaporative cooling |
| Filtration | G2 filter for fine dust particles |
| Power | Three-phase 415/240V, custom distribution panels and main disconnects |
| Transformer output | 2600 kVA, 3.8kV/415V, 3PH (representative) |
| Distribution | Distribution cabinet input 4x1200A 3PH, output 36x100A 3PH (representative) |
| PDU | 18-port intelligent PDU, input 415V/100A, output 18x C19 + 1x C13, Ethernet/Modbus |
| Shelving | Stackable, adjustable shelving, inner-layer height about 400mm |
| Typical applications | Crypto mining and high-density edge computing |
Specifications reflect the RakworX modular mining farm line; exact capacity, electrical, and configuration vary by installation. Power figures are representative. Contact us to confirm the design for your project.
The Comp-Utility Difference
Why Comp-Utility?
Engineer-Owned and Operated
Comp-Utility is owned and operated by engineers, with licensed Texas Professional Engineers (P.E.) on staff. That rigor anchors every design, specification, and installation.
Turnkey, Single-Contract Partner
We sell, design, install, and maintain complete infrastructure end to end. One accountable team and one contract for power, cooling, distribution, and cabling.
Trusted Since 1992
We have designed, installed, and maintained mission-critical power and cooling infrastructure across Central Texas since 1992, through every generation of the technology.
24/7 Emergency Response and Preventative Maintenance
Our technicians provide preventative maintenance programs and 24/7 emergency response, with rapid on-site dispatch across Central Texas when facilities need us most.
Licensed, Certified & Recognized
We hold ourselves to the standards of the institutions we serve, from professional licensure and jobsite safety to the industry organizations that set the bar for mission-critical work.
Licensed Professional Engineers
State of Texas (TBPE)
OSHA 30 Certified
Field Technicians
AFCOM Member
Data center industry association
7x24 Exchange Member
Mission-critical infrastructure
Frequently Asked Questions
What is a modular mining farm?
A modular mining farm is a prefabricated, containerized facility built to house and power large numbers of crypto miners or high-density compute. Instead of constructing a building, operators deploy ready-made modules with integrated power, cooling, and racking. The RakworX modular mining farm uses this approach and scales up to 40 megawatts per installation, with rapid deployment and modular expansion.
How does the mining farm handle cooling?
The RakworX mining farm uses EC fans and a fresh-air direct evaporative cooling system to keep internal ambient temperature in range efficiently, which matters because miners run hot and continuously. Managing air humidity reduces stress on the hardware and helps extend service life. A G2 filter cleans incoming air of fine dust, which protects the equipment from fouling.
How is power distributed in the mining farm?
Power is delivered three-phase at 415/240V through custom power distribution panels and main disconnects, with transformer output distribution sized for large loads. An 18-port intelligent PDU distributes power at the shelf and can be managed remotely over Ethernet and Modbus, with per-port on/off and measurement. Comp-Utility's engineers design the distribution to feed dense miner loads safely.
How does the mining farm scale?
The farm is modular, so capacity is added by deploying more containerized modules, scaling up to 40 megawatts per installation. Stackable, adjustable shelving holds miners densely and is easy to expand. This lets operators start at a given capacity and grow rapidly as demand and economics allow. Comp-Utility plans the site power and phasing to support that growth.
Is the mining farm only for crypto mining?
No. While it is optimized for crypto mining, the same modular, high-density, efficiently cooled design also suits high-density edge computing workloads. The combination of dense racking, strong cooling, and large-scale power distribution applies to other sustained high-compute applications. Comp-Utility helps determine whether this platform or a modular data center is the better fit for your workload.
How is the shelving organized for miners?
The mining farm uses stackable, adjustable shelving with an inner-layer height of about 400mm, designed for efficient space utilization and easy installation. The shelving keeps strong and weak electrical separated for safety and tidiness, and the PDU is integrated with the shelf for a clean overall structure. Comp-Utility configures the shelving and PDU layout for your miner models.
What are the power requirements for a RakworX mining farm?
The platform is designed around three-phase 415/240V power with custom distribution panels, main disconnects, and transformer output distribution sized for large loads, scaling up to 40 MW per installation. Exact electrical requirements depend on the size and miner count of your deployment. Comp-Utility's licensed engineers assess your available power and design the distribution and utility tie-in accordingly.
Who designs and installs a RakworX mining farm in Central Texas?
Comp-Utility designs, supplies, and installs RakworX modular mining farms across Central Texas, from utility tie-in and power distribution through cooling and commissioning, under one contract. Engineer-owned since 1992, with licensed Texas Professional Engineers and OSHA-trained technicians on staff. Call (512) 346-0999 or email sales@comp-utility.com to request a quote.
